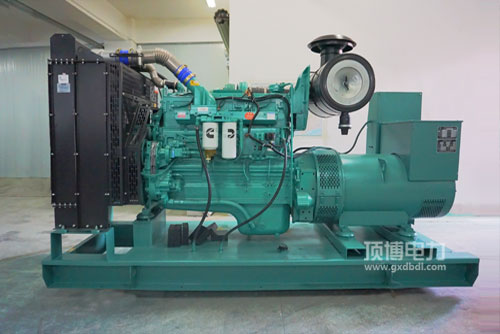

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用起驱动力柴油实惠性好: 比较好的的柴油管控程序，独具的STC、ESTC 分级a管控程序，特异定制的火塞顶上挥发室，进行高压噴射柴油，充沛做雾化，挥发充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用启驱力瞬态耐热性良好: 完满的启驱力产品 设计构思，协调康明斯差异化的的EFC软件系统，操作精确高，没有响应事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用热车机升电机功率高: 整体风格设计紧身.样貌分布科学合理，运营市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50具备全球非道路施工3时期及亚洲Tier2. Tier 3排放标准法律规定符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件必须得要性好， 发起机执行及保障养护便民，成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率范围图 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯发电机组用汽车发思想的特别：体积计算小， 压缩的比较高， 喷淋喷嘴室内空气电加热，便于启动的，挪动车截电原的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启心理规格型号	最常用输出(kW)Prime Power	预留耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
